UV能量计
    发布时间: 2020-12-16 16:52

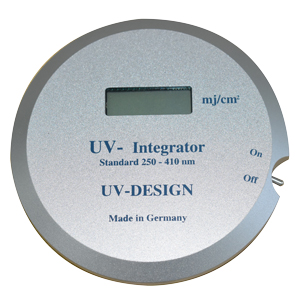

UV能量计
UV能量计



技术指数(Technology index ):
光强范围(Intensity range):0-5,000 mW/cm²
量程范围(Measurement range):0-999,999 mJ/cm²
技术精度(Technical accuracy):±5%
采用电源(Electric power):3.6V高能量锂电池(3.6V high energy LIBs)
电池寿命(Battery life):30000H
外形尺寸(Size):圆盘式结构,直径128mm(毫米),高度14mm(毫米)
(disk structure, diameter: 128mm, height: 14mm)
重      量(Weight):约500g(克),铝合金材质。(about 500g, aluminum material)
环境温度(Environmental temperature):0~45℃(摄氏度)
承受温度(Withstand temperature):110℃(摄氏度)条件下持续照射不超过10s(秒)
(less than 10s in the 110°C continuously irradiation)
校验周期(Verifying cycle):由于所有的电子元件,如:传感器通常都会随使用时间的延长而老化,为更准确地保证测量精度和效果,建议校验的周期为一年。
(as all electronic compenent such as sensor will be aging as time goes, to ensure the measurement accurancy and effect, we suggust the verifying cycle to be 1 year.)
保修期限(Warranty period):由购买日起一年内保修,人为损坏或客观因素导致的损坏及感光膜和液晶屏易耗品除外。
(one year from the purchasing date, except the sensitive f ilm and LCD . Non artif icial damage or caused by objective reasons. )
自动保护(Automatic protect):1小时无感应自动关机 。(automatic power-off with one hour no induction)
